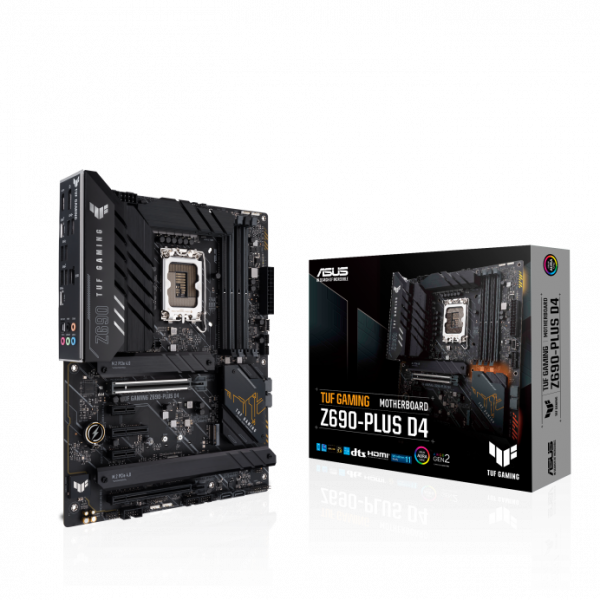

ASUS TUF GAMING Z690-PLUS D4 Intel?? Z690 (LGA 1700) ATX gaming motherboard, 15 DrMOS power stages, PCIe?? 5.0, DDR4 memory, four M.2 slots, Intel 2.5 Gb Ethernet, HDMI??, DisplayPort???, USB 3.2 Gen 2×2 Type-C??, front USB 3.2 Gen 2 Type C, SATA 6 Gbps, Thunderbolt??? 4 header and Aura Sync RGB lighting
Intel?? LGA 1700 socket: Ready for 12th Gen Intel Core??? processors
Enhanced power solution: 14+1 DrMOS, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
Next-gen connectivity: PCIe?? 5.0, USB 3.2 Gen2x2 Type-C??, front USB 3.2 Gen 2 Type-C, Thunderbolt??? 4 header support
Made for online gaming: Intel 2.5 Gb Ethernet and TUF LANGuard
Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate
Outshine RGB Aura Effect: Stylish edge and PCH lighting design, addressable RGB headers and RGB strip header support
CPU
Intel?? Socket LGA1700 for 12th Gen Intel?? Core???, Pentium?? Gold and Celeron?? Processors
Supports Intel?? Turbo Boost Technology 2.0 and Intel?? Turbo Boost Max Technology 3.0**
Memory
4 x DIMM, Max. 128GB, DDR4
Dual Channel Memory Architecture
Supports Intel?? Extreme Memory Profile (XMP)
OptiMem II
phics
1 x DisplayPort**
1 x HDMI?? port***
Expansion Slots
Intel?? 12th Gen Processors*
1 x PCIe 5.0 x16 slot
Intel?? Z690 Chipset**
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x4 slot
2 x PCIe 3.0 x1 slots
Storage
Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Ethernet
TUF LANGuard
Operating System
Windows?? 11 64-bit, Windows?? 10 64-bit
Form Factor
ATX 30.5cm x 24.4cm
